WALL BUSHINGS
WALL BUSHINGS MADE OF DEZINCIFICATION-PROOF BRASS OR RED BRASS FOR INTALLATIONS WITHIN UTILITY SHAFTS AND FRONT-WALL INSTALLATIONS
- with anti-twist protection
- flat sealing connection possible at front and back side
- suited for direct connection of mixing taps
- ½“ female thread with flat sealing flange
- maximum anti-twist protection when using shims with the according gauge (45 mm or 150 mm)
- adjustable in depth - fits for each wall thickness and balances out unevenness

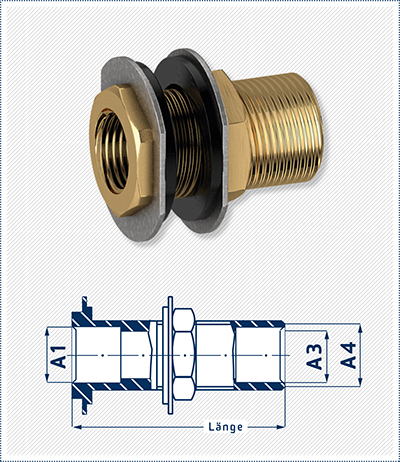

WALL LEAD-THROUGHfemale thread x female / male thread
wall lead-through for solid fixing of mountings with flat-sealing male threads and cylindrical female threads
nominal pressure: PN 16
brass incl. 2 rubber spacers
A1 |
A2 |
A3 |
A4 |
wrench size |
article number |
for wall thickness in mm |
length in mm |
weight in g |
IG 1/2" |
|
IG 1/2" |
AG 3/4" |
SW 30 SW 30 |
9342-20 R 9343-20 R |
0 - 20 20 - 50 |
50 80 |
170 190 |

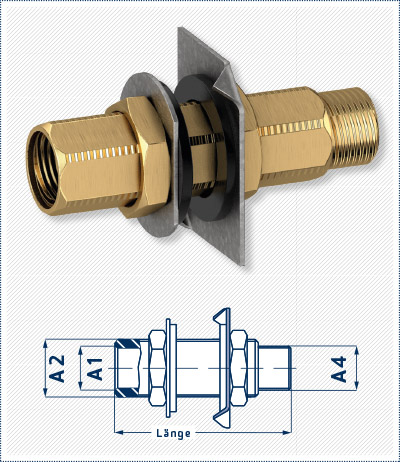

WALL LEAD-THROUGH WITH ANTI-TWIST PROTECTIONfemale / male thread x male thread on hexagon key-wide 24
wall lead-through with anti-twist protection for solid fixing of mountings with flat-sealing male threads and cylindrical female threads
nominal pressure: PN 16
brass incl. 2 rubber spacers
A1 |
A2 |
|
A4 |
wrench size |
article number |
for wall thickness in mm |
length in mm |
weight in g |
IG 1/2" |
AG 3/4" |
|
AG 1/2" |
SW 24 SW 24 |
9366-20 R 9367-20 R |
0-23 0-53 |
65 95 |
200 280 |
IG 1/2" |
AG 3/4" |
|
AG 1/2" |
SW 24 SW 24 |
9368-20 R 9376-20 R |
0-88 0-118 |
130 160 |
375 457 |

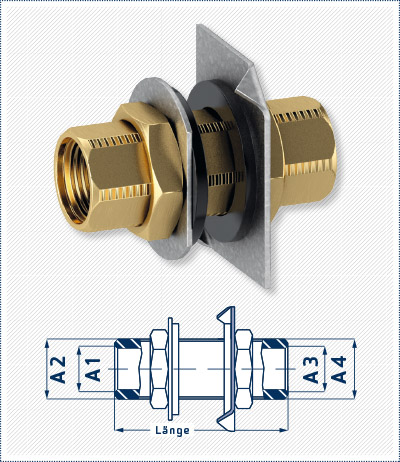

female / male thread x female / male thread on hexagon key-wide 24
wall lead-through with anti-twist protection for solid fixing of mountings with flat-sealing male threads and cylindrical female threads
nominal pressure: PN 16
brass incl. 2 rubber spacers
A1 |
A2 |
A3 |
A4 |
wrench size |
article number |
for wall thickness in mm |
length in mm |
weight in g |
IG 1/2" |
AG 3/4" |
IG 1/2" |
AG 3/4" |
SW 24 SW 24 SW 24 |
9366-20 F 9367-20 F 9368-20 F |
0-50 0-80 0-115 |
65 95 130 |
200 280 375 |

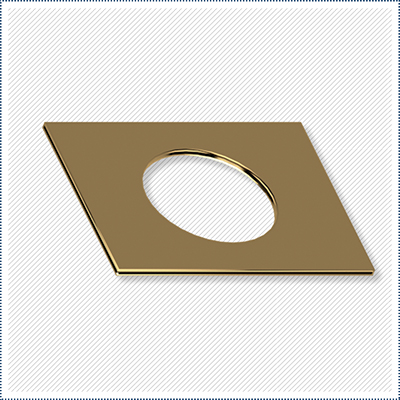

SHIM FOR WALL LEAD-THROUGH
eine Bohrung ∅ 27 mm mittig
zwei Bohrungen ∅ 27 mm im 45 mm Mittelabstand
suited for wall lead-through |
article number |
number of bores |
illustration |
length in mm |
weight in g |
934...-20 R 934...-20 R |
7983-90 U 7984-90 U |
1 2 |
A B |
55 x 43 100 x 55 |
22 54 |
ANTI-TWIST PROTECTION FOR WALL LEAD-THROUGH
Abb. C
mit SW 30 am Bund; eine Bohrung ∅ 27 mm mittig
Abb. D
mit durchgehendem Sechskant SW 24
Abb. E
mit zwei Aufnahmen für Wanddurchführungen
mit durchgehendem Sechskant SW 24 im 45 mm Mittelabstand
Abb. F
mit zwei Aufnahmen für Wanddurchführungen
mit durchgehendem Sechskant SW 24 im 153 mm Mittelabstand
suited for wall lead-through |
article number |
number of bores |
illustration |
length in mm |
weight in g |
934...-20 R 936 / 7...-20 R / F 936 / 7...-20 R / F 936 / 7...-20 R / F |
7986-90 U 7988-93 T 7989-90 T 7990-90 T |
1 1 2 2 |
C D E F |
46 x 33 55 x 43 100 x 55 205 x 50 |
10 22 57 128 |
