MANIFOLDS
MANIFOLDS FOR DOMETIC DRINKING WATER INSTALLATIONS
- made of dezincification-proof brass

- 1/2” connections for mixing taps / toilet flushing

- 3/4” connections for pressure flushing valve / further manifolds

- universal use

- quick installation

- compensation of pressure impacts

- (when using with flexibel hoses)

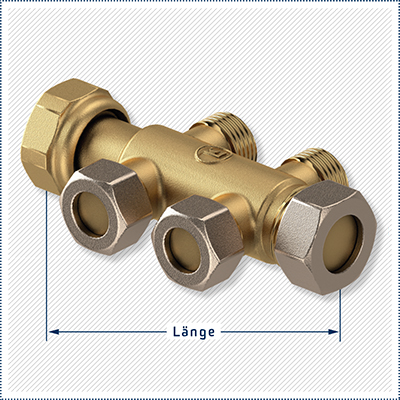

PROFESSIONAL MANIFOLD 5-PORT
professional manifold 5-port for hot and cold water
flat-sealing ports
nominal pressure: PN 16
brass, dezincification-proof


| fitting combination |
dimension |
article number |
description |
length in mm |
weight in g |
1 x ÜM* 3/4" 1 x AG 3/4" 4 x AG 1/2" |
DN 12 |
9300-20 N |

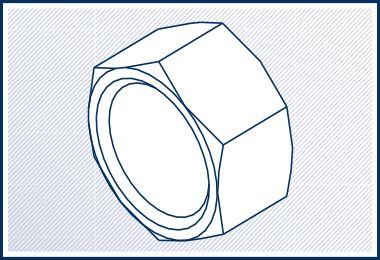

inkl. Blindmuttern* 2 x 1/2" + 1 x 3/4" |
96 |
510 |
| DN 12 |
9310-20 N |

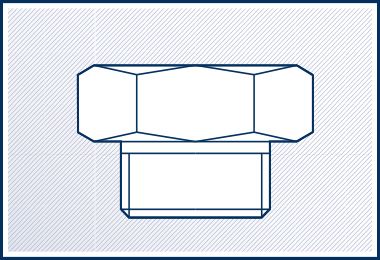

dito + Adapter 1" IG x 3/4" AG |
114 |
540 |
